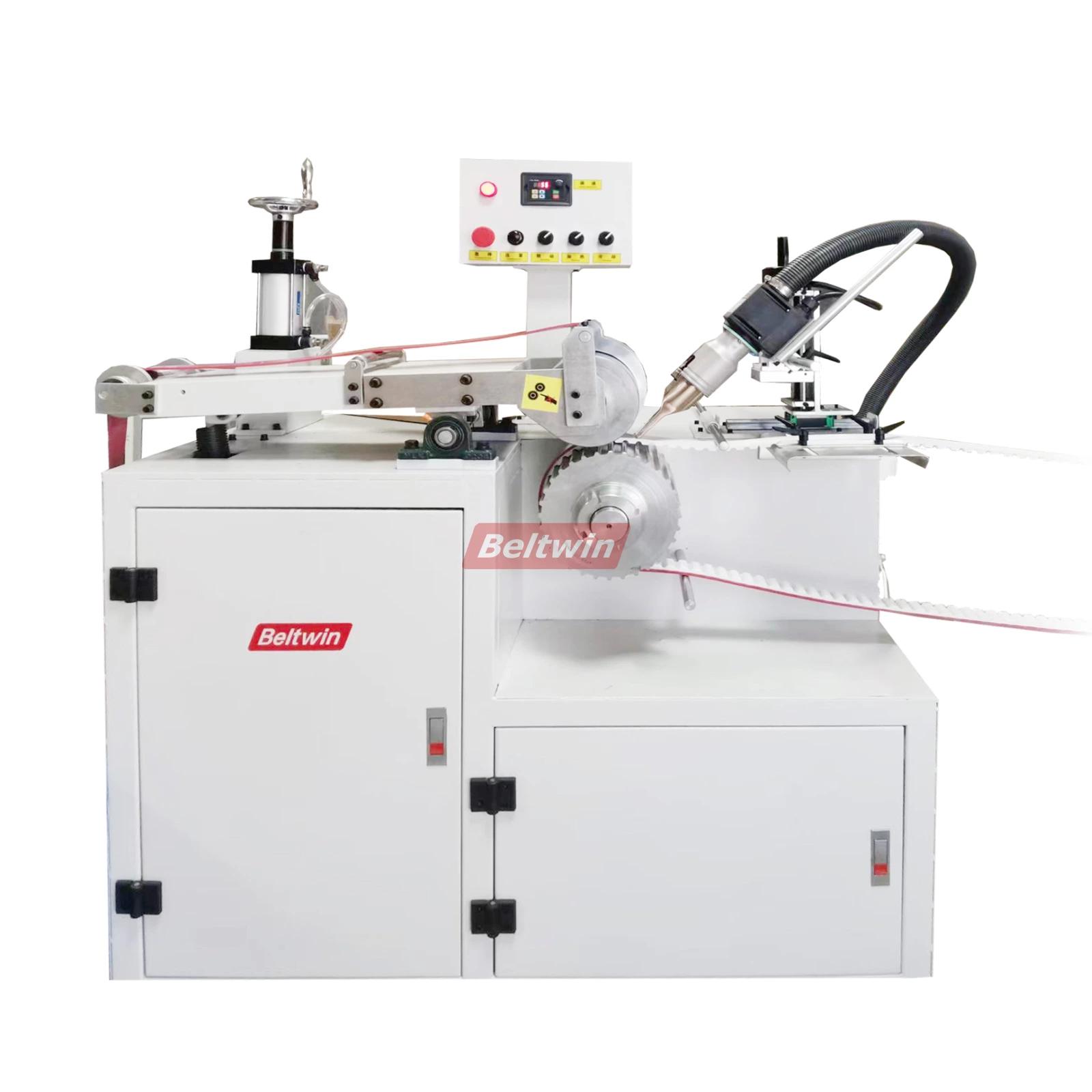

PortuguêsMáquina recubridora de correas de distribución de PU QC180C

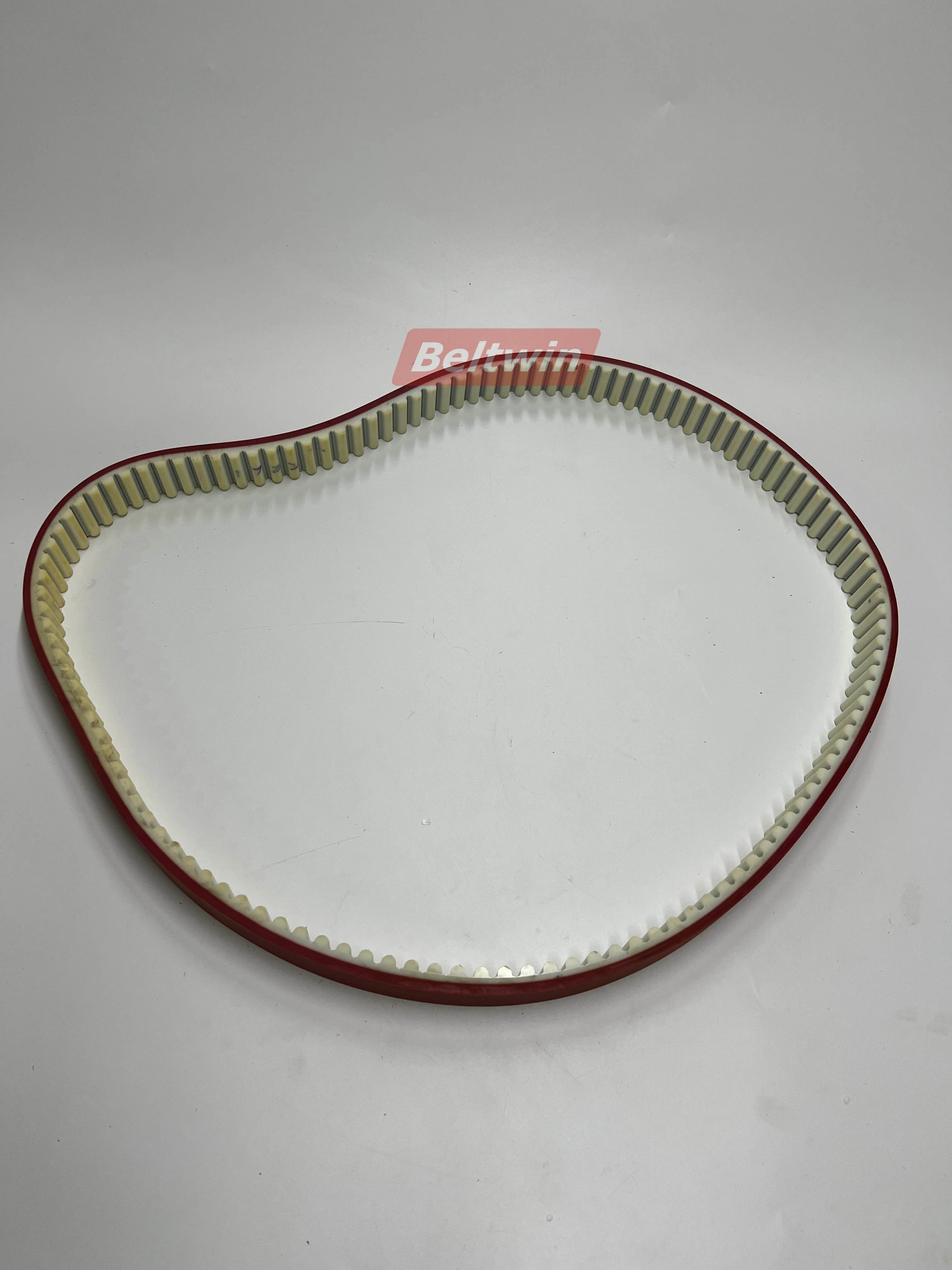

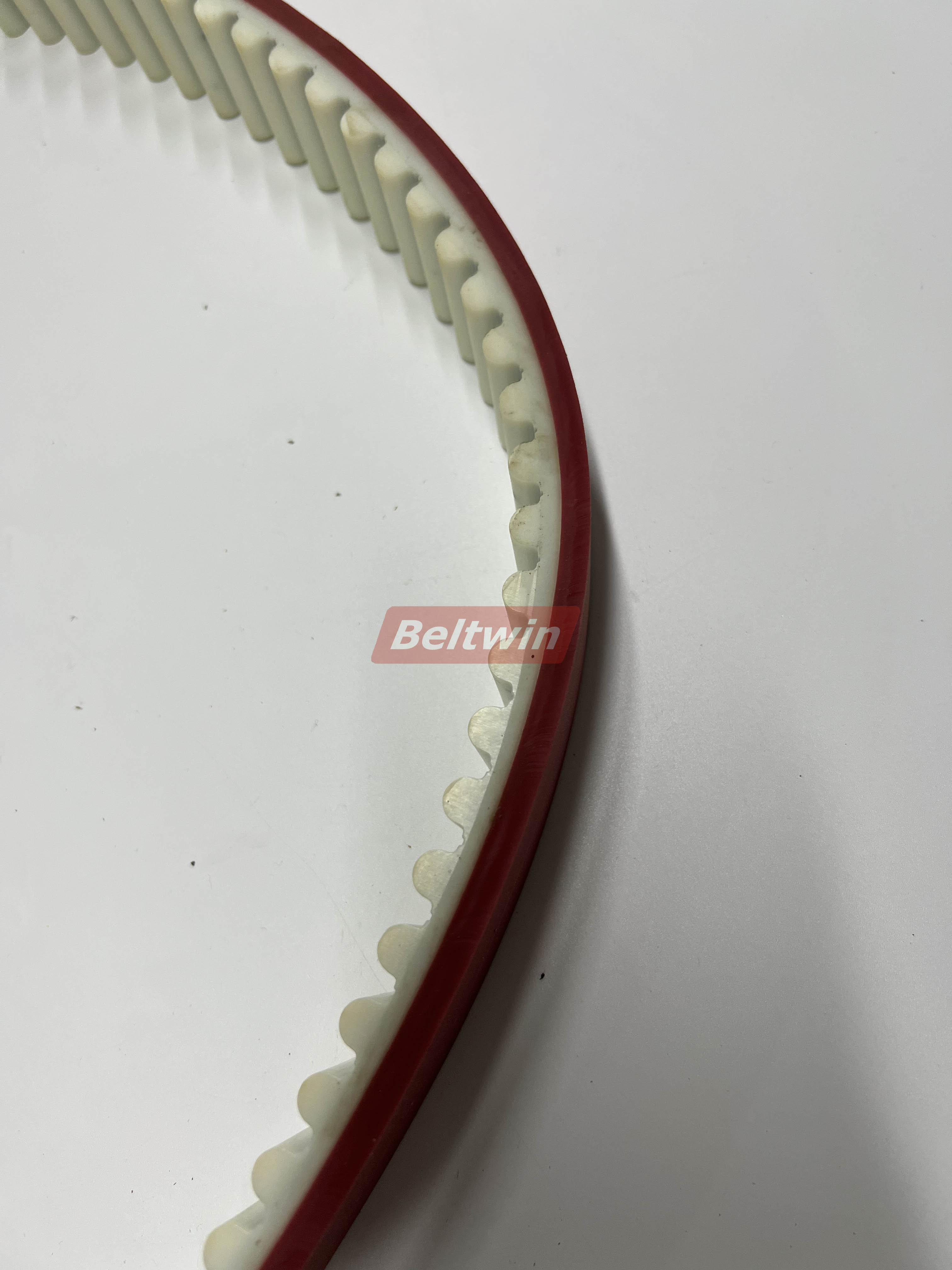

Esta máquina es principalmente para el uso de pistola de calor para recubrir en caliente el material de caucho en la correa de distribución de PU, puede suavizar y proteger la correa de distribución.
QC180C es principalmente para calentar y recubrir diferentes materiales (APL, PU, forma y etc) en la correa de distribución de PU por pistola de calefacción. Este proceso puede ablandar y proteger la correa dentada.
Ficha Técnica
| Modelo | QC180C |
| Anchura máxima de Banda | 180mm |
| Longitud Total Mínima | 600mm |
| Velocidad del eje | Frequency adjustable speed |
| Voltaje | 380V 3phase or as request |
| Potencia del motor | 0.75KW |
| Potencia del soplador | 0.38KW |
| Estructura de la máquina | 40*40 square tube with copper plate |
| Estructura de la superficie | Plastic coating+accessories electroplating treatment |
| Método de refrigeración | Circulating water cooling for the timing belt wheel to make the machine can continue to work for 24 hours |
Including
| 1PC | Timing belt wheel model for H |
| 1PC | Timing belt wheel model for AT5/T5 |
| 1PC | Timing belt wheel model for AT10/T10 |
| 1PC | Timing belt wheel model for AT20/T2 |
| 1PC | Timing belt wheel model for HTD8M/STD8M/RPP8M |
| 1PC | Hot air gun made in Switzerland / Brand: BAK |
| 1PC | Hot air gun nozzle for width 70/120/150/200mm each |
| 1PC | Stainless steel water tank for water circulation system |
| 1PC | Timing belt stand |
| Features | Benefits |
| Water circulation system with stainless water tank, long time to keep water cooling for timing belt running wheel | The timing belt wheel will not overheat and belt will not stick to timing wheel. Make sure 24 hours no-stop working for large quantity coating |
| With 5pcs timing belt wheels (belt type optional) | Can change timing belt wheels to suit different timing belts and improve coating accuarcy |
| The cylinder controls the welding gap between the timing belt and the material and the distance can be adjusted | The total thickness of welding can be adjusted,not too thick or too thin. To match usage requirements |
| Switzerland "BAK"brand heating gun | Ensure the coating quality and speed |

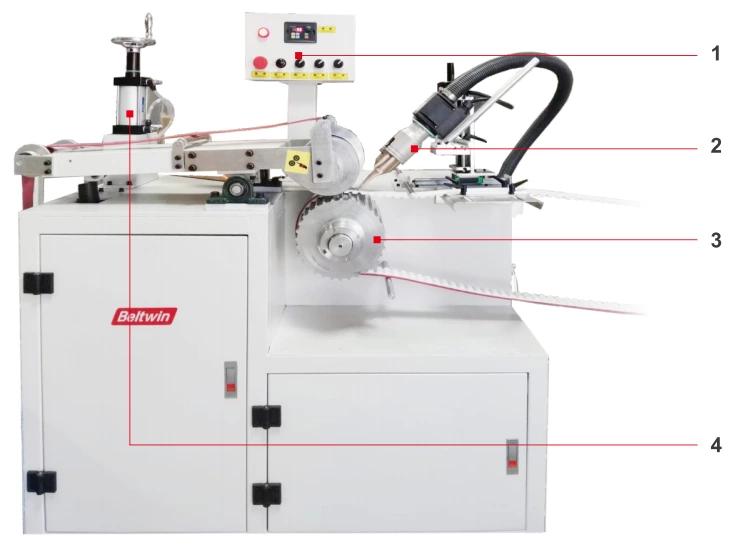

- Panel de control: control de la fijación del rodillo, calentamiento de la pistola de calor, refrigeración por circulación de agua, etc.
- Pistola calefactora marca BAK fabricada en Suiza

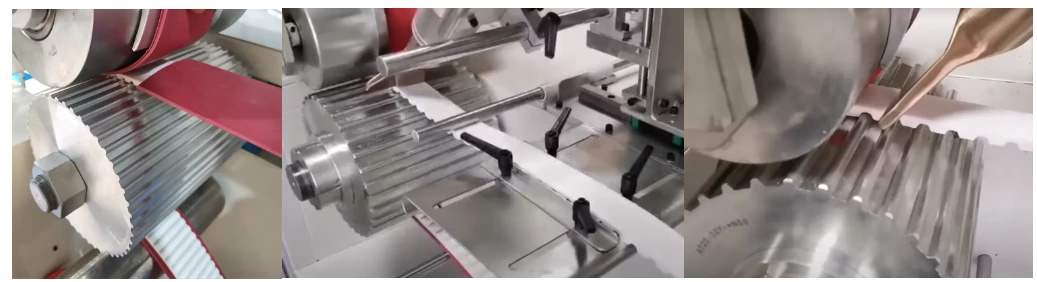

- Rueda motriz síncrona: correa dentada dentada, equipada con refrigeración por circulación de agua
- Cilindro: ruta de fijación de rodillo de control
