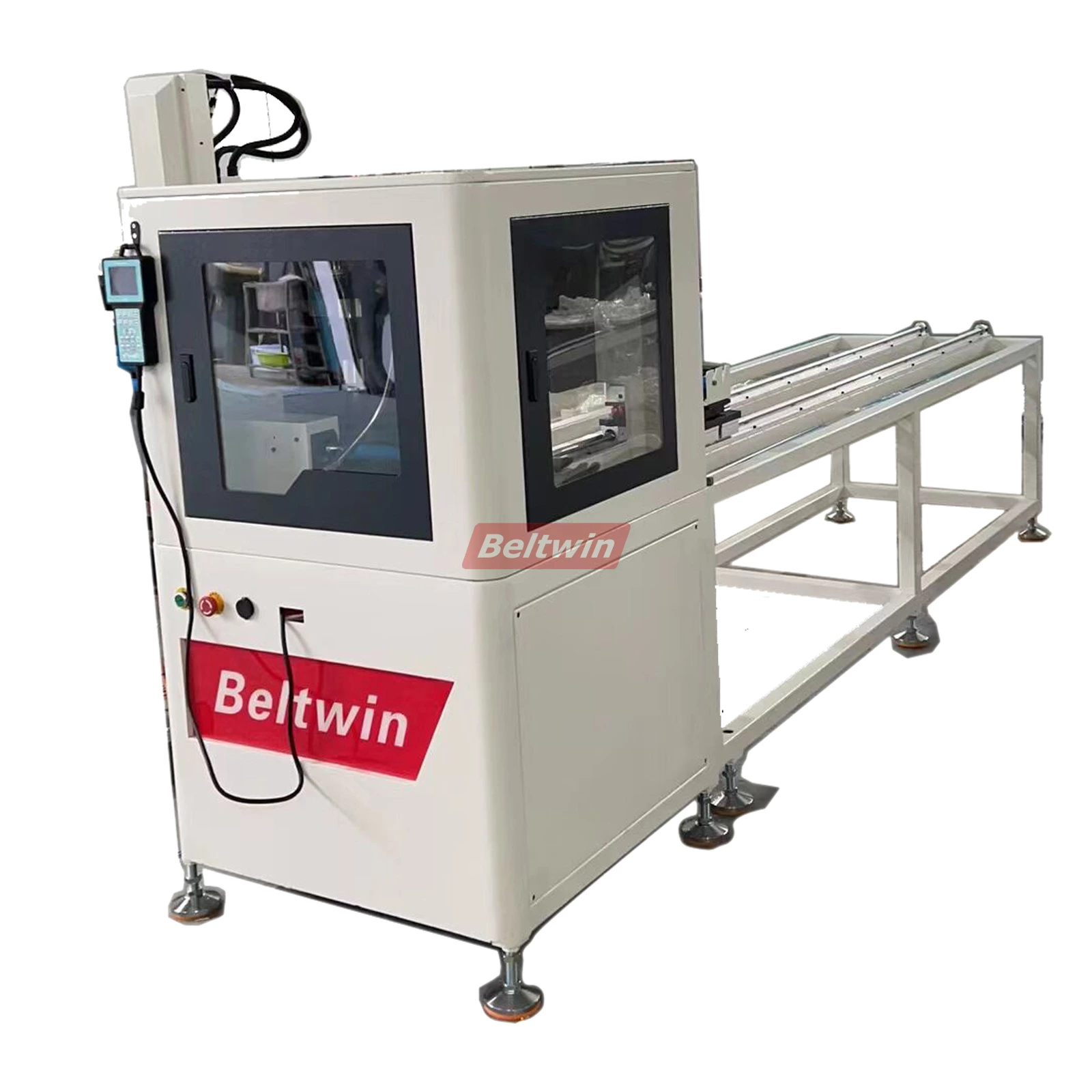

PortuguêsMáquina perforadora de correas de distribución TD200T &TD500T
Esta máquina puede utilizarse para distintos tipos de procesamiento de correas dentadas, como ranurado, perforación, avellanado y extracción de dientes.
Ficha Técnica
| Model | TD200T | TD500T |
| Spindle Power | 800w | 2.2kw |
| Spindle Speed | 24000r/min | 24000r/min |
| Maximum Belt Width | 200mm | 500mm |
| Maximum Belt Length | 6000mm | 8000mm |
| Minimum Belt Length | 400mm | 700mm |
| Repositioning Accuracy | ±0.02mm | ±0.02mm |
| Blade Size | 3-6mm | 3-12.7mm |
| Instruction Format | HPLG3D G-code | HPLG3D G-code |
| Tailstock | Lagging wheel | Lagging wheel |
| Feeding Height | 150mm | 150mm |
| Maximum Space Speed | 5000mm/min | 7000mm/min |
| Working Speed | 3500mm/min | 5000mm/min |
Configuration
| Lathe bed | Aluminum profile lathe bed |
| Screw | High precision 2510 TAIWAN ball screw |
| Reduction drive | None |
| Metal plate | Fully enclosed |
| Control system | Four axis handle control system |
| Spindle cooling | Air cooling |
| Gantry | Aluminum rectangular tube |
| Y-type guide rail | TAIWAN straight square rail |
| Dustproof | X-axis fitted with an organ cover |
| Generator | 57 stepper motor |
| Graphics software | CAD, MASCAM, UG, etc |
| Wire | Aviation high flexibility shielding wire |
